Duty Slurry Pump

Application ScopeThe ZJ series slurry pumps find extensive applications in industries such as power generation, metallurgy, coal mining, building materials, and chemical engineerin...


  • Hraffic: 4.5-2335m³
  • Head: 5-133M
  • Electrical machinery: 1.5KW-800KW
  • Model: 40ZJ-350ZJ
  • Net positive suction head: 1.3-5.8
  • Rotation speed: 300-2900
Download as PDF

Description

Product Tags

Application Scope
The ZJ series slurry pumps find extensive applications in industries such as power generation, metallurgy, coal mining, building materials, and chemical engineering. Specifically designed for efficient handling of abrasive slurries with solid particles, they excel in scenarios like processing concentrate and tailings in mineral processing plants, removing ash/slag in power plants, transporting coal slurry and heavy-medium coal in coal preparation facilities, and conveying mineral pulp in coastal/river mining operations. These pumps can handle slurries with a maximum weight concentration of 45% for ash slurry and 60% for mineral slurry, and can be configured for series operation upon request.


Material Construction
Crafted from proprietary high-chromium alloy wear-resistant materials, the ZJ series offers exceptional durability and erosion resistance, ensuring reliable performance in harsh industrial environments.


Modeling Convention
For example: 100ZJ-I-A36


  • 100: Outlet diameter (100 mm)
  • ZJ: Denotes "slurry pump"
  • I/II: Single-stage (I) or two-stage (II) configuration
  • A/B/C/F: Impeller vane count (A=5 vanes, B=4 vanes, C=3 vanes, F=6 vanes)
  • 36: Impeller diameter (36 cm)


Key Features and Applications
Developed through integrating user feedback with cutting-edge technologies—including modern fluid dynamics, mechanical engineering principles, and CAD software—the ZJ series sets a benchmark for industrial slurry handling. Key attributes include:


  • Design Flexibility: Single-stage, single-suction centrifugal pumps available in two configurations: horizontal (ZJ) and vertical (ZJL). Horizontal models offer outlet diameters ranging from 40 mm to 350 mm, with multiple impeller diameters for precise head requirements.
  • Innovative Engineering: Features advanced hydraulic and structural designs. Wet-end components are manufactured from proprietary high-chromium wear-resistant alloys, delivering superior efficiency, energy savings, extended service life, and reduced weight. The pumps operate with minimal vibration, low noise, and require less maintenance, ensuring reliable long-term performance.

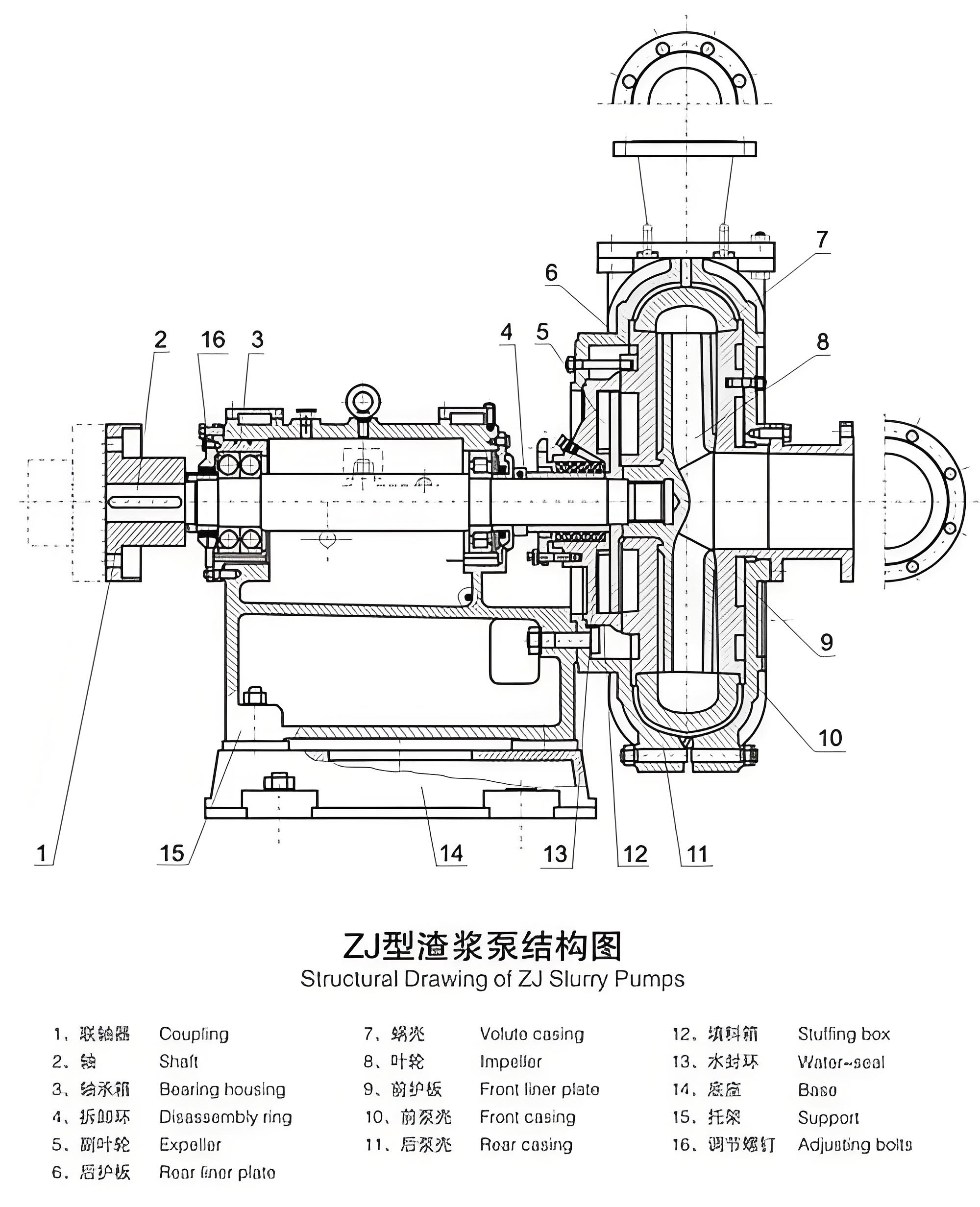

  • Dual-Casing Structure: The pump body features a double-casing design for easy replacement of wear-resistant internal components. The outer casing is constructed from nodular cast iron, while the inner casing uses high-chromium alloy cast iron or steel, tailored to varying pressure requirements.
  • Sealing Solutions: Two shaft sealing options are available: a combination of auxiliary impeller and packing seal, or mechanical seals, ensuring leak-proof operation in high-pressure applications.

  • Installation Versatility: The pump outlet can be rotated in 45-degree increments to eight different positions, offering flexible installation to meet specific system layouts.

  • Slurry pump drive types: DC direct drive, CR parallel belt drive, ZVZ up-down belt drive, CV vertical belt drive, etc.


Engineered for heavy-duty industrial applications, the ZJ series slurry pumps combine rugged durability, operational efficiency, and design versatility, making them the preferred choice for demanding material-handling tasks worldwide.




 Model

 motor power  (KW)

 Flow Q(m³/h)

Head H(m)

Rotation speed n(r/min)most efficientη% Cavitation allowance NPSH(m)

maximum particle size(mm)

weight（kg)
 350ZJ-I-F100 220-560 860-2339 37-63 490-590 77.6 4.4-5.8 96 5465
 300ZJ-I-A100 185-450 464-1826 15.3-65.2 300-590 81.1 3.0 885265
 300ZJ-I-A95185-400 441-1735 13.8-58.8 300-590 78.13.0 88 5220
 300ZJ-I-A90 185-560 505-1844 21.2-79.9 400-730 82.8 3.9 85 5005
 300ZJ-I-A85 160-450 477-1742 19-71 400-730 79.8 3.8 85 4965
 300ZJ-I-A70 185-630 635-2333 16-77 490-980 80.4 3.9 92 3560
 300ZJ-I-A65 160-500 589-2166 14-66 490-980 77.4 3.7 92 3531
 300ZJ-I-A56 75-250 395-1560 9.7-46 490-980 80.9 3.5 96 3030
 250ZJ-I-A103 250-710 402-1573 30-110 400-730 74.5 2.8 69 5085
 250ZJ-I-A96 185-560 403-1466 25-94 400-730 77.8 3.5 69 5035
 250ZJ-I-A90 160-450 378-1374 22-82 400-730 73.8 3.4 69 4980
 250ZJ-I-A85 220-800 376-1504 30-129 490-980 77 3.5 76 4530
 250ZJ-I-A83 220-800 367-1469 29-123 490-980 75.5 3.5 76 4514
 250ZJ-I-A80 200-710 354-1416 27-115 490-980 73.5 3.4 76 4490
 250ZJ-I-A78 185-630 415-1796 21-103 490-980 75 3.2 76 4474
 250ZJ-I-A75 132-560 300-1480 20.8-98 490-980 77.5 3.0 72 3480
 250ZJ-I-A73 132-500 292-1441 20-92.4 490-980 76.5 3.0 72 3466
 250ZJ-I-A70 110-450 280-1381 18-85 490-980 75 2.9 72 3446
 250ZJ-I-A68 110-450 272-1342 17-80 490-980 73.5 2.7 72 3432
 250ZJ-I-A65 90-315 299-1249 15-71 490-980 76.9 3.0 72 3020
 250ZJ-I-A63 90-315 200-1211 14-67 490-980 76 3.0 72 3008
 250ZJ-I-A60 75-560 276-1153 13-61 490-980 73.9 2.8 72 2991
 200ZJ-I-A85 160-560 221-907 32-133.7 490-980 70.5 2.8 54 4110
 200ZJ-I-A75 110-355 225-900 23-103 490-980 74 3.0 56 3070
 200ZJ-I-A73 110-355 219-876 21.6-98 490-980 73.1 3.0 56 3056
 200ZJ-I-A70 90-315 205-976 19.4-86 490-980 75.6 2.8 56 2465
 200ZJ-I-A68 90-315 199-948 18.3-82 490-980 74.6 2.8 56 2453
 200ZJ-I-A65 75-250 235-950 16.5-72 490-980 79.6 2.5 62 2323
 200ZJ-I-A63 75-250 228-921 15-68 490-980 78.6 2.5 62 2311
 200ZJ-I-A60 75-185 218-870 14-62 490-980 83.5 2.5 62 2223
 200ZJ-I-A58 55-185211-841 13-58 490-980 82.5 2.5 62 2214
 150ZJ-I-A71 75-220 142-552 22-94 490-980 69.8 2.4 48 2263
 150ZJ-I-A70 55-185 93-401 20-91 490-980 62.3 2.0 37 2245
 150ZJ-I-A65 75-200 150-600 17-76 490-980 70.8 2.5 48 2223
 150ZJ-I-A63 55-185 146-582 16-71 490-980 69.8 2.5 48 2211
 150ZJ-I-A60 45-160 135-550 15-64 490-980 75.9 2.5 48 2203
 150ZJ-I-A58 37-132 131-532 14-59.3 490-980 74.9 2.5 48 2033
 150ZJ-I-C58 37-110 134-596 12.8-61 490-980 69 2.0 75 2063
 150ZJ-I-A57 37-110 95-427 13-56.3 490-980 67.8 1.8 32 2023
 150ZJ-I-A55 37-110 124-504 12.3-53.4 490-980 73 2.3 48 2019
 150ZJ-I-A50 30-75 115-460 9.5-43 490-980 76.8 2.5 48 1735
 150ZJ-I-A48 22-75 111-442 8.7-39.7 490-980 75.8 2.5 48 1728
 150ZJ-I-C42 30-132 142-550 12-63 700-1480 77.1 2.2 69 1605
 100ZJ-I-A50 30-160 85-360 20-100 700-1480 69.6 2.5 34 1475
 100ZJ-I-A46 30-132 79-331 17-85 700-1480 67.6 2.3 34 1461
 100ZJ-I-A42 22-90 66-275 15-70.8 700-1480 71 2.5 35 1075
 100ZJ-I-A39 18.5-75 61-255 12.6-61 700-1480 69 2.4 35 1064
 100ZJ-I-B42 22-90 83-365 12.7-67 700-1480 71.6 2.5 40 1085
 100ZJG-I-B42 15-75 45-205 12.6-70 700-1480 63.2 1.8 48 1080
 100ZJ-I-A36 15-55 61-245 9.7-50 700-14802 71.6 2.0 32 1010
 100ZJ-I-A33 11-45 56-225 8.2-41.6 700-1480 69.6 1.8 32 1003
 80ZJ-I-A52 30-160 51-242 22-110 700-1480 56.3 2.1 21 1465
 80ZJ-I-A42 18.5-75 61-204 14-70 700-1480 66.7 2.5 24 1053
 80ZJ-I-A39 15-55 57-189 12-61 700-1480 65 2.4 24 1042
 80ZJ-I-A36 11-45 46-190 9.6-51 700-1480 67.7 2.5 24 980
 80ZJ-I-A33 7.5-37 43-174 8.0-43.2 700-148065.7  2.3 24 973
 65ZJ-I-A30 4-15 23-79 7.4-34.8 700-1460 63.5 2.0 19 504
 65ZJ-I-A27 3-11 20-71 6-28.2 700-1460 61.5 1.8 19 500
 50ZJ-I-A50 22-90 27-111 22.3-110 700-1480 45 3.0 13 1378
 50ZJ-I-A46 15-55 23-94 17-86 700-1480 44.7 1.4 14 1082
 50ZJ-I-A33 4-18.5 12-54 7.7-43 700-1480 42 2.9 13 537
 40ZJ-I-A19 1.5-11 8-35 12.8-57 1430-2930 58.8 1.3  11 173
 40ZJ-I-A17 0.55-7.5 4.5-23 9.4-44.6 1400-2900 52.4 2.5 11 121


Introduction to Slurry Pumps
Slurry pumps are essential industrial equipment designed for efficiently transferring abrasive, high-density slurries containing solid particles. Widely used in mining, metallurgy, wastewater treatment, and chemical industries, these pumps are engineered to handle tough fluids like mineral pulp, coal sludge, and industrial waste.


Key Features & Advantages


  1. Superior Wear Resistance: Constructed with high-chromium cast iron or wear-resistant rubber components, our slurry pumps resist erosion from hard particles, ensuring long service life even in harsh environments.
  2. High Efficiency: The optimized impeller and volute design maximize hydraulic performance, reducing energy consumption while maintaining strong conveying capacity for both low and high-viscosity slurries.
  3. Reliable Sealing System: Equipped with advanced mechanical seals or auxiliary impeller seals, these pumps prevent leakage, enhancing operational safety and minimizing maintenance costs.
  4. Versatile Design: Available in various configurations (centrifugal, vertical, horizontal), our slurry pumps adapt to different flow rates, pressures, and installation requirements, offering flexibility for diverse applications.

  5. Low Maintenance: Durable materials and robust construction reduce downtime, while easy-to-access components simplify inspection and replacement, improving overall productivity.

Ideal for heavy-duty operations, our slurry pumps combine reliability, efficiency, and cost-effectiveness, making them the preferred choice for industries demanding consistent performance. Contact us today to explore how our slurry pumps can optimize your material handling processes!
