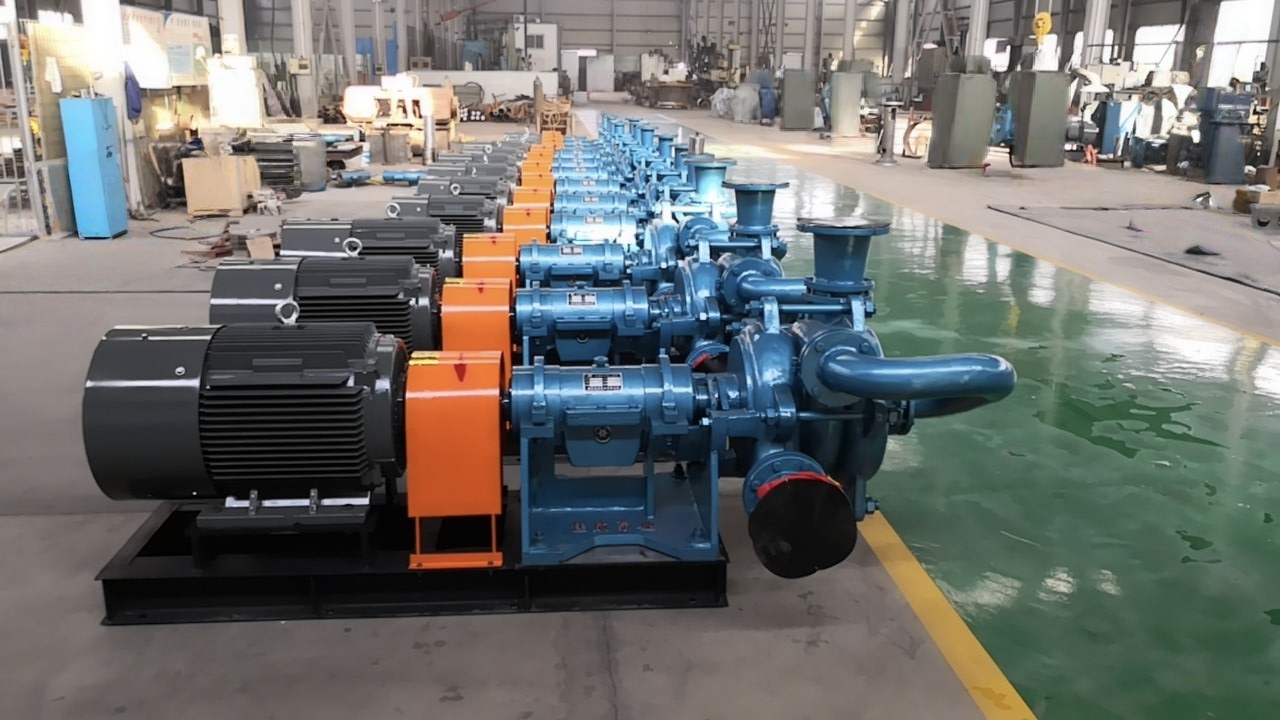

Filter Press Feed Pump

The ZRS special slurry pump uses advanced fluid theory and installs two main impellers in opposite directions. During operation, it adjusts to the resistance changes inside the fil...


  • Hraffic: 64-538m³
  • Head: 21-120m
  • Electrical machinery: 15-160KW
  • Model: 100-250
  • Net positive suction head: 1.8-10.7
  • Rotation speed: 980-1480
Download as PDF

Description

Product Tags

The ZRS special slurry pump uses advanced fluid theory and installs two main impellers in opposite directions. During operation, it adjusts to the resistance changes inside the filter press to achieve large-flow, low-pressure feeding and small-flow, high-pressure filtering. Its special hydraulic performance perfectly matches the filter press's gradual process from an empty cavity to filling and then drying.


During the initial feeding stage:


  • No need to use a knife gate to control flow, avoiding motor overload caused by large flow.
  • Low pressure does not impact the filter plate frames, reducing damage to the filter cloth on the frames and preventing the plate cores from shaking due to impacts.


During the later filtering stage:


  • The small flow is less likely to cause pump blockages or clog the filter press inlet.


These features are currently difficult for single-impeller centrifugal pumps to achieve.




ModelWith power P（KW）Flow Q(m³/h)HeadH(m)Rotational speedn(r/min) Maximum efficiencyη%  Cavitation allowanceNPSH(m)By maximum granularity(mm)Weight( kg)
 200ZRS-B45 Y280M-4  90KW 272 72.9148065.3  10.7 28 1731
Y315M1-4  132KW 447 57.5 1480 68 10.7 28 1731
Y315L1-4  160KW 538 47 1480 62 10.7 28 1731
 Y226M-6  30KW 180 32  980 65.3 4.7 28 1731
 Y250M-6  37KW 296 25.2  980 68 4.7 28 1731
 Y250M-6 37KW 356 20.6  980 62 4.7 28 1731
 150ZRS-B45 Y280M-4  90KW 223 72.5 1480 58 7.3 25.6 1576
 Y315S-4  110KW 372 60 1480 65 7.3 25.6 1576
 Y3154S-4  110KW 458 49 1480 60 7.3 25.6 1576
 Y225M-6  30KW 147 32 980 58 3.2 25.6 1576
 Y250M-6  37KW 247 26.3 980 65 3.2 25.6 1576
 Y250M-6  37KW 303 21 980 60 3.2 25.6 1576
 100ZRS-B42 Y225M-4  45KW 96 70.7 1480 51.9 2.8 18 1085
 Y250M-4  55KW 149 63.8 1480 61 2.8 18 1085
 Y280S-4  75KW 205 56 1480 63 2.8 18 1085
 Y180L-6  15KW 64 31 980 51.9 1.8 18 1085
 Y200L1-6  18.5KW 99 28 980 61 1.8 18 1085
 Y200L2-6  22KW 136 25 980 63 1.8 18 1085



**Introduction to Filter Press Feed Pump**   Our Filter Press Feed Pumps are designed for efficient solid-liquid separation in industrial applications, particularly for demanding wastewater treatment and mining processes. Built with robust stainless steel or high-chrome alloy materials, these pumps offer exceptional resistance to abrasion, corrosion, and high pressure, ensuring long-lasting performance even with viscous or particle-laden fluids.   Featuring a heavy-duty casing and precision-engineered impellers, our pumps deliver stable flow rates (up to 460m³/h) and high pressure (max.1.3 bar) to meet the rigorous requirements of filter press systems. The modular design allows easy maintenance and quick component replacement, minimizing downtime and operational costs.   Available in multiple configurations (centrifugal or positive displacement), our pumps are customizable to fit various media types and process conditions. Trust in our reliable, energy-efficient solutions to enhance your filtration efficiency and streamline production.   *Contact us today for tailored pump solutions!*
