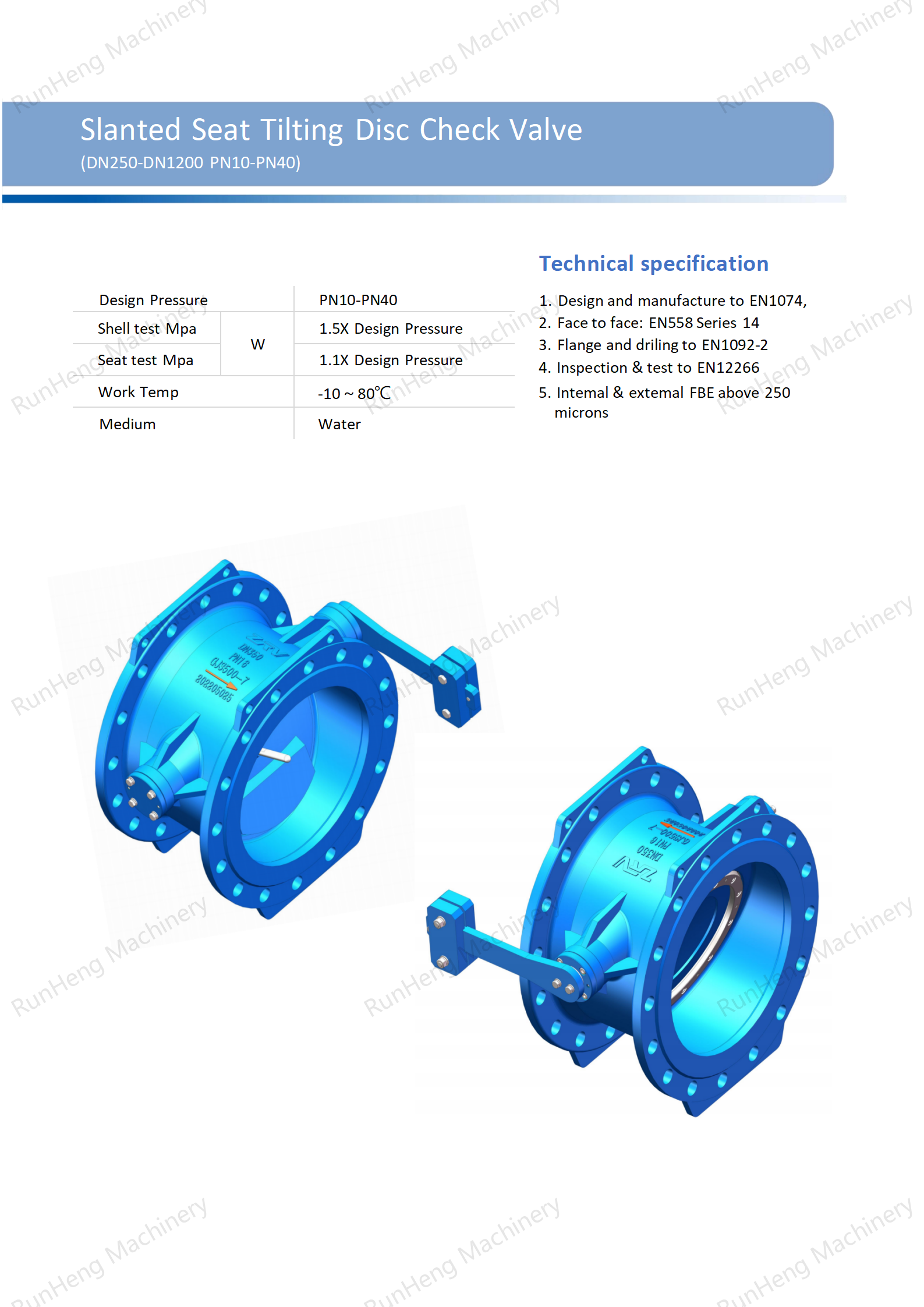

The Inclined Plate Check Valve (also known as the Tilting Disc Check Valve) is a revolutionary solution for preventing backflow in pipelines while minimizing water hammer and system vibrations. Designed with a tilted disc mechanism, it automatically opens when fluid flows forward and closes instantly when flow reverses, ensuring zero backflow and protecting pumps, turbines, and other equipment from damage .
- Ultra-Fast Closure: The inclined disc design reduces closing time to ≤0.5 seconds, significantly mitigating water hammer effects compared to traditional swing check valves .
- Low Pressure Drop: Streamlined flow path ensures minimal resistance, optimizing energy efficiency in high-flow applications like water treatment plants and irrigation systems .
- Quiet Operation: Smooth disc movement eliminates clanging noise, making it ideal for residential buildings, hotels, and noise-sensitive environments .
- Corrosion-Resistant Materials: Available in cast iron, stainless steel, or bronze bodies with EPDM or nitrile rubber seals, it withstands harsh media like seawater, chemicals, and sewage .
- Self-Cleaning Design: Perforated or screened disc options prevent debris accumulation, ensuring reliable performance in dirty fluids .
- Water/Wastewater: Municipal supply systems, sewage pumps, and irrigation networks.
- Industrial: Oil & gas pipelines, chemical processing plants, and power station cooling systems.
- HVAC: Chilled water loops and heating systems requiring silent backflow prevention.
- Triple Functionality: Combines backflow prevention, water hammer reduction, and vibration dampening in one compact unit .

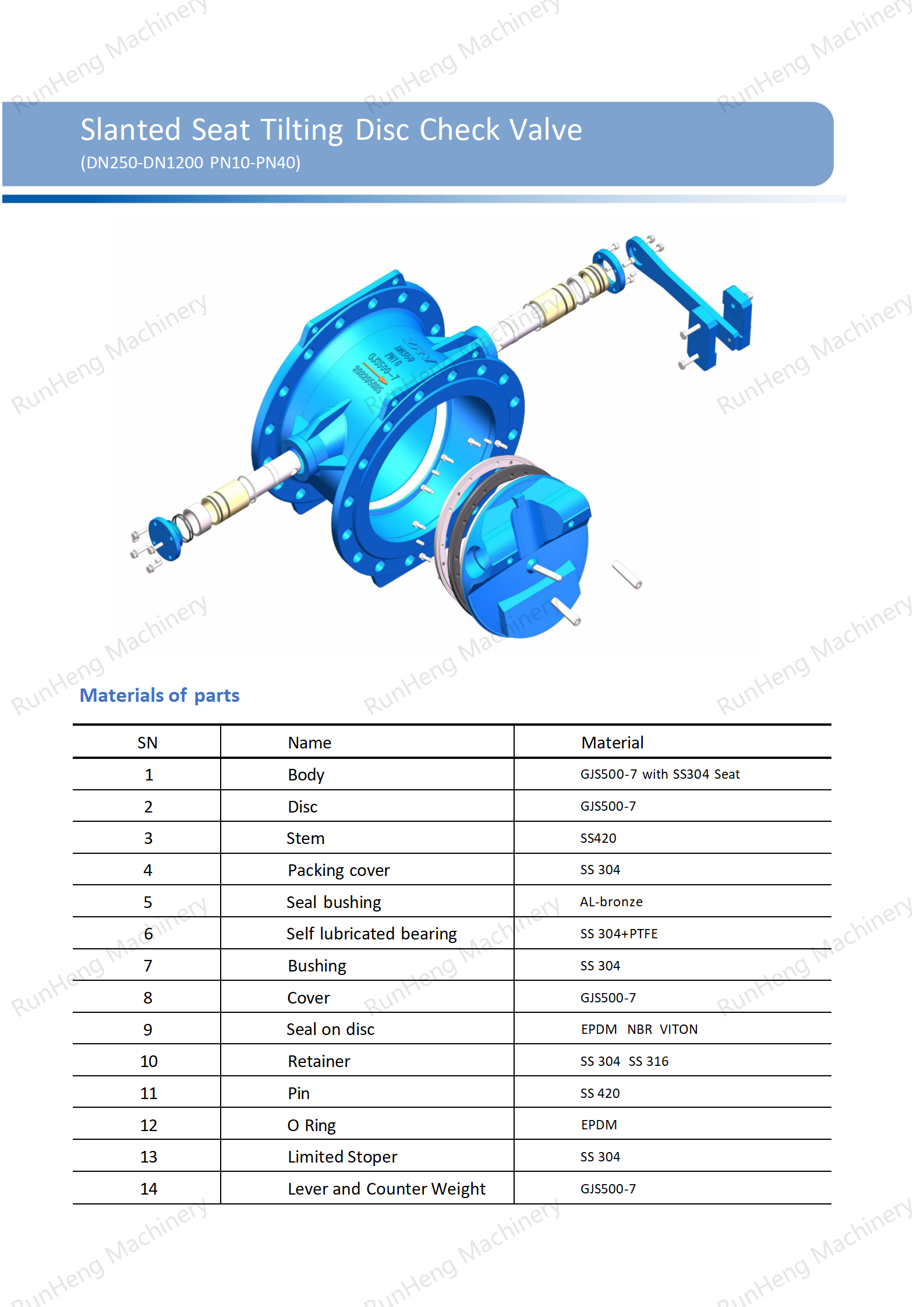

- Easy Maintenance: No external actuators or complex mechanisms—simply inspect and replace the disc or seal as needed.
- Global Compliance: Meets ISO 5208, API 594, and ASME standards for safety and reliability in international markets .
Trust the Inclined Plate Check Valve to safeguard your systems with fast response, energy efficiency, and durability in even the most demanding conditions.
