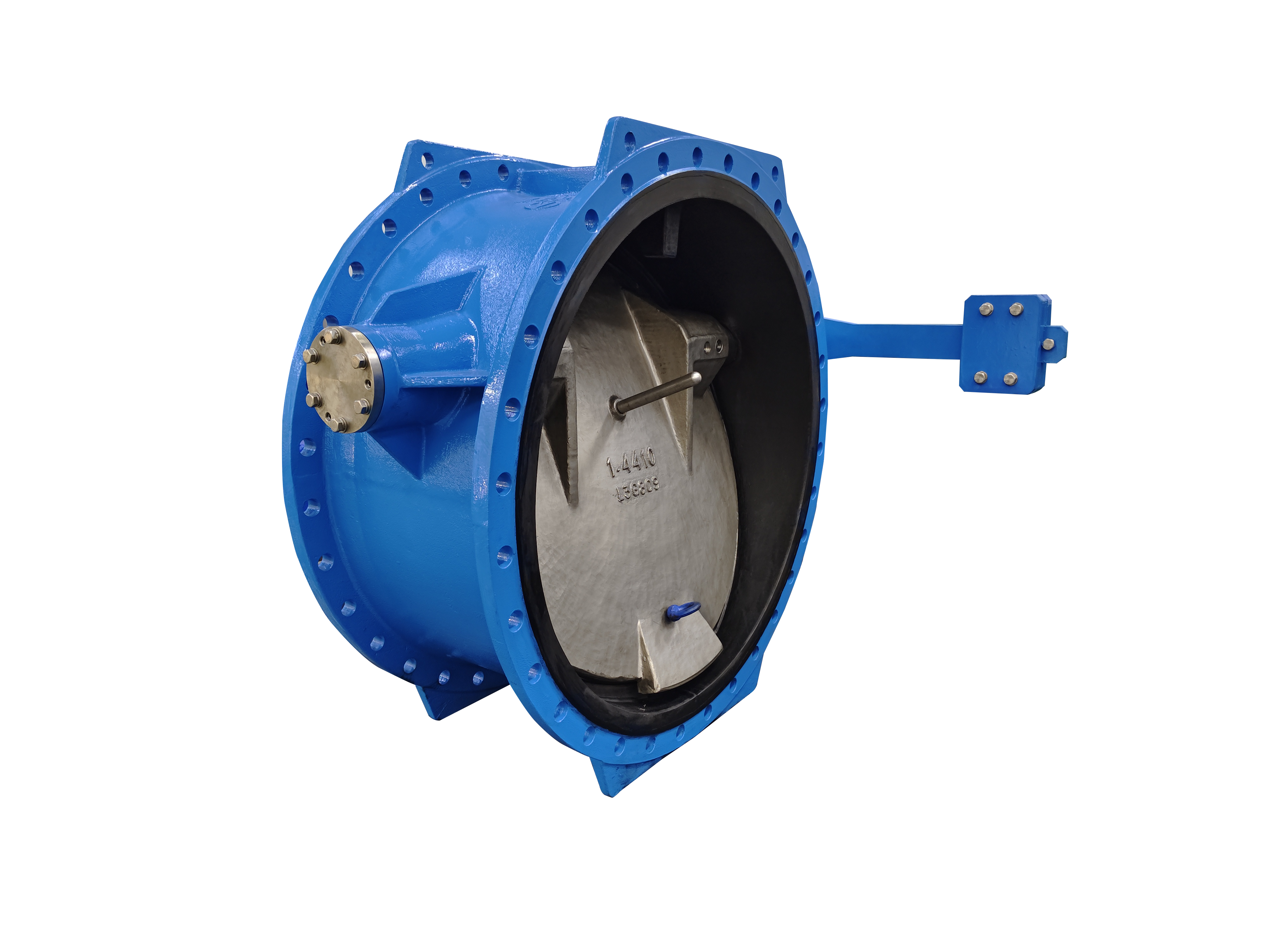

H1: Beyond Soft Seals: Zero-Leak Geometry of Triple Eccentric Butterfly Valves

H2: Engineering Defects of Standard Butterfly Valves

In high-pressure industrial systems (Class 300 and above), standard soft-seal butterfly valves typically fail after fewer than 500 cycles. The root cause is

friction. Conventional designs rely on interference fit, which damages seals over time, leading to internal leakage and costly downtime.

H2: The Triple Eccentric "Cam Action" Principle by Zhengzhou Runheng Machinery Technology Co., Ltd.

Our triple eccentric design incorporates angular eccentricity (conical sealing). This ensures the disc only contacts the seat at the final 1° of closing angle.

- Frictionless Operation: This "cam action" converts sliding friction into compressive sealing, reducing mechanical wear by over 90%.

- Thermal Compensation: We adopt SS316L laminated graphite seals. The metal layers provide the necessary modulus of elasticity, maintaining Class VI zero-leakage standards even during rapid thermal cycling (up to 425°C).

H3: Engineering Tips for Actuator Size Selection

If you notice a torque spike during the initial opening phase, your seat may be worn. Switching to a triple eccentric structure can extend the service life of your pneumatic actuators by 40% due to reduced torque requirements.
